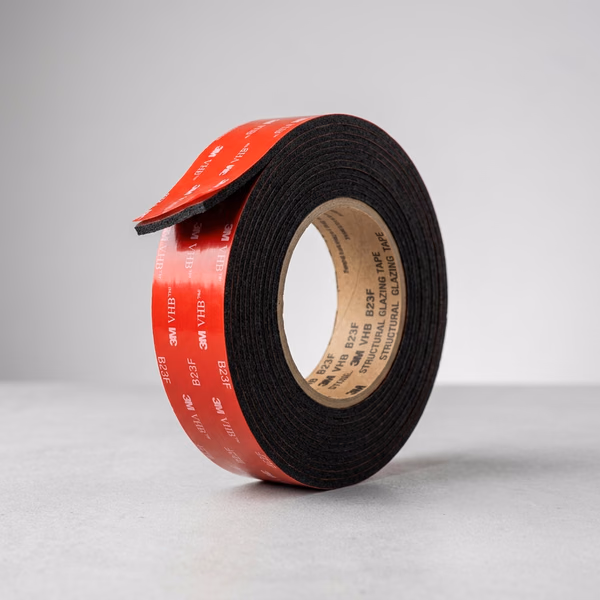

3M™ VHB™ Structural Glazing Tape B23F
3M™ VHB™ Structural Glazing Tape B23F is a highly specialized, black, double-sided acrylic foam tape engineered specifically for demanding structural glazing applications. At 2.3 mm thick, this premium tape provides an incredibly robust, permanent bond that effectively replaces traditional structural silicone, gaskets, and mechanical fasteners. It conforms exceptionally well to surface irregularities and delivers an immediate handling strength that drastically reduces assembly time and the need for clamping or curing during window and door manufacturing.
Renowned for its unparalleled long-term durability, the B23F tape offers superior resistance to UV light, severe temperature changes, and varying weather conditions, ensuring that architectural facades remain secure and watertight over their operational lifespan. Additionally, its UL GREENGUARD and UL GREENGUARD Gold certifications guarantee that it meets stringent standards for low chemical emissions, promoting safer indoor air quality in commercial building projects.
Technical Specifications
| dimensions | 15mm, 20mm, 25mm widths available |
|---|---|
| thickness | 2.3 mm (0.090 in.) |
| material | Black Pressure-Sensitive Acrylic Foam |
| certifications | UL GREENGUARD and UL GREENGUARD Gold Certified |
Key Applications
- Structural glazing applications
- Attaching glass panels to metal frames
- Curtain wall systems assembly
- Commercial windows and doors
- Skylight and canopy system construction
